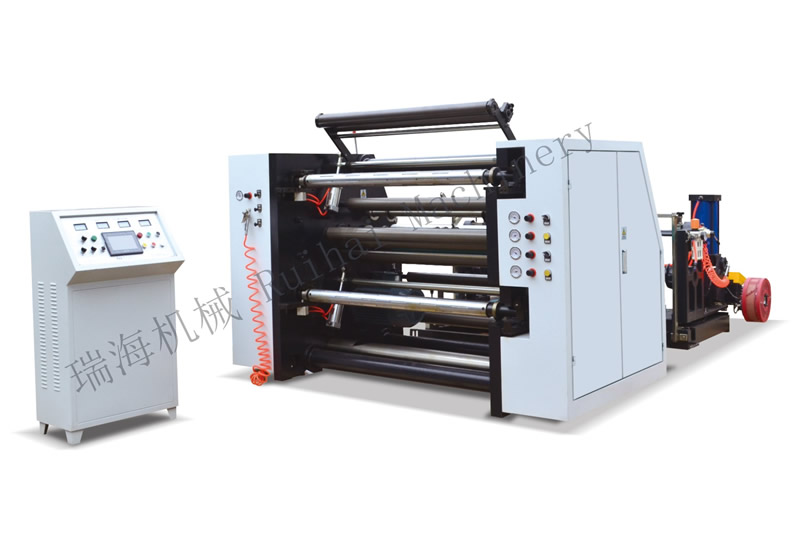

WZFQ-C Computer High-speed Slitting And Rewinding Machine



Name:WZFQ-C Computer High-speed Slitting And Rewinding Machine
No:WZFQ-C

Performance and Characteristics
This machine is used for slitting and rewinding various large rolling materials such as paper,(20g/m2-120g/m2) cellophane paper, bill paper, double-face adhesive tape, PVC, OPP, PET, weave material, nowoven of cloth, etc.
? This machine use microcomputer control,magnetic powder cluth style tension control,and also with central winding style.
? Mian motor use frequency converter for timing,it has the functions of automatic metering,automatic alarm,etc.
? Adopt A and B pneumatic shaft structure for rewinding.
? It adopts photoelectric automatic error correction adjustment system for unwinding,anomalistic materials will be easy slit.(or liquid press style subtense system).
? Equipped with automatic waste film blowing device.(vertical knife structure)Manual material loading for unwinding with taper cover style pneumatic shaft..

Main Technical Parameters

Model

WZFQ-1100C

WZFQ-1300C

WZFQ-1600C

Max.width of unwinding

1100mm

1300mm

1600mm

Max.diameter of unwinding

Φ1400(700)mm

Φ1400(700)mm

Φ1400(700)mm

Min.width of slitting

30mm

30mm

30mm

Max.diameter of rewinding

Φ550mm

Φ550mm

Φ550mm

Speed

10-200m/min

10-200m/min

10-200m/min

Total Power

11kw

13kw

13kw

power supply

380V/50Hz

380V/50Hz

380V/50Hz

Weight

3200kg

3400kg

3800kg

Overall dimension (LxWxH)

2000x2250x1350(mm)

2000x2450x1350(mm)

2000x2650x1350(mm)
