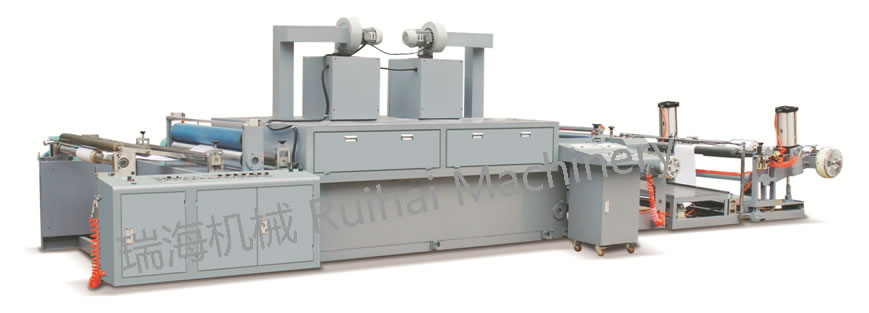

SFJ Water-solubility Rolling Paper Laminating Machine



Name:SFJ Water-solubility Rolling Paper Laminating Machine
No:SFJ

Performance and Characteristics
? This machine is suitable for laminating various paper-film, paper-papermaterials, such as cigarette, drink, and fruit etc.
? This machine use rubber for laminating by gluing, the style of horizontal rewinding is easy for operation.
? Automatic materials loading by cylinder with magnetic powder tension control.
? Use pneumatic shaft both for unwind and rewinding which is easy for operation.
? Main motor adopt frequency converter timing.
? Use constant temperature device for oven.

Main Technical Parameters

Model

SFJ-1100

SFJ-1400

Max. width of unwind

1100mm

1400mm

Max. diameter of unwinding

¢1400mm

¢1400mm

Max. diameter of laminating

¢1200mm

¢1200mm

Speed

10-60m/min

10-60m/min

Suitable power supply

380V/50HZ

380V/50HZ

Weight

3500kg

4000kg

Overall dimension (L×W×H )

7500×2000×1800(mm)

7500×2300×1800(mm)
