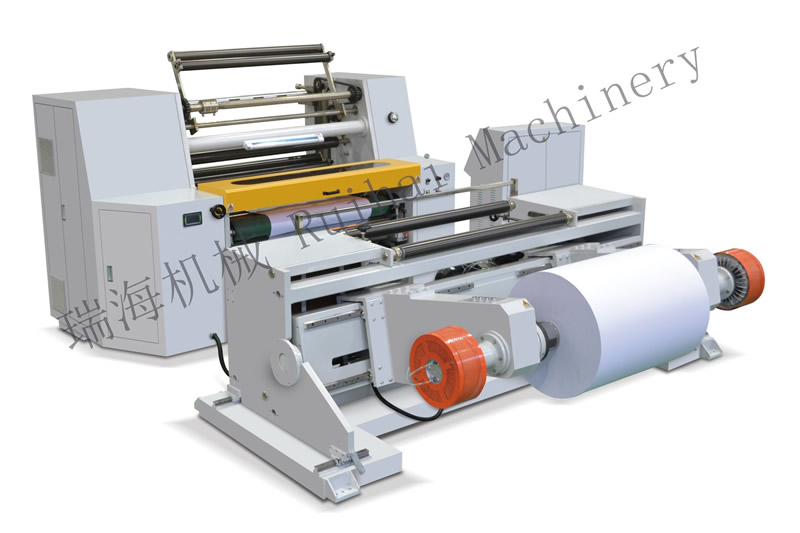

WZFQ-A Computer High-speed Slitting Machine


Name:WZFQ-A Computer High-speed Slitting Machine
No:WZFQ-A

Performance and Characteristics

This machine is used for slitting and rewinding various large rolling materials such as paper, (120g/m2~300g/m2)Kraft paper, coated paper, aluminum foil, PVC, plastic material, etc.
? This machine adopts motor moment control and automatic taper tension, central surface reeling. Frequency converter timing for main motor, keeping speed up and stable operation.
? It has the functions of auto metering, automatic alarm, etc. Adopt A and B pneumatic shaft structure for rewinding, easy for loading and unloading.
? It adopts photoelectric automatic error correction adjustment system for unwinding, anomalistic materials will be easy slit. (or liquid press style subtense system).
? Equipped with automatic waste film blowing device.
? Automatic material loading by pneumatic, matched with inflatable shaft (3"or 6")

Main Technical Parameters

Model

WZFQ- 1100A

WZFQ- 1300A

WZFQ- 1600A

Max width

1100mm

1300mm

1600mm

Max Diameter for unwinding

φ1400mm

φ1400mm

φ1400mm

Min width of slitting

50mm

50mm

50mm

Max Diameter of rewinding

φ800/1000mm

φ800/1000mm

φ800/1000mm

Speed

10-150m/min

10-150m/min

10-150m/min

Total Power

7.5kw

9.5kw

9.5kw

Power supply

380V/50Hz

380V/50Hz

380V/50Hz

Weight

3000kg

3300kg

4000kg

Overal dimension(LxWxH)

3000x2000x1700(mm)

3000x2400x1700(mm)

3000x2700x1700(mm)
