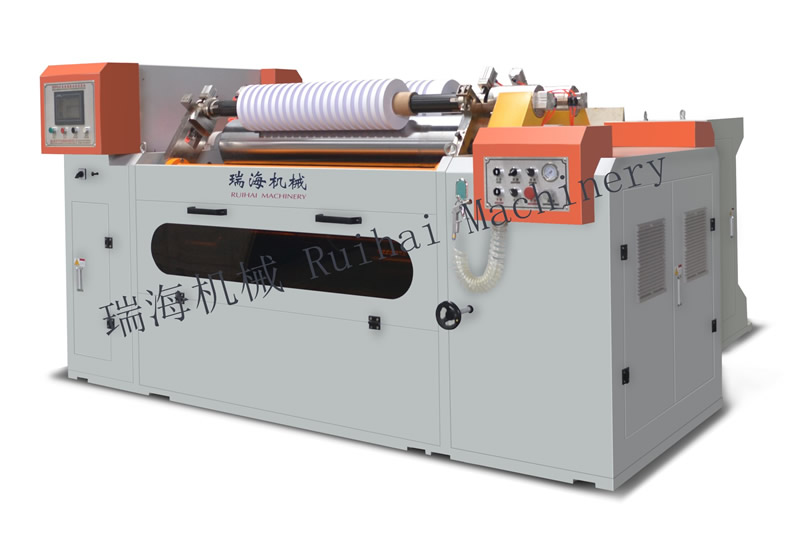

BDFQ-D Slitting and Rewinding Machine For Surface Rolling




Name：BDFQ-D Slitting and Rewinding Machine For Surface Rolling
No：BDFQ-D

Performance and Characteristics
This machine is suitable for slitting rolling materials such as paper, aluminum foil, PVC, plastic film, insulation material, etc.
This motor is equipped with frequency converter timing device, constant tension magnetic powder control system for unwinding, photoelectric auto error-correction , two pieces magnetic powder clutches, main motor for controlling the center rewinding can be touched with surface, double shafts rewinding interlaced without meeting. It also has the function of meter can be setup in advance and auto stop working, etc.

Main Technical Parameters

Model

BDFQ-900D

BDFQ-1100D

BDFQ-1300D

Max diameter of unwinding

900mm

1100mm

1300mm

Max diameter of rewinding

￠1400mm

￠1400mm

￠1400mm

Max width of rewinding

￠600mm

￠600mm

￠600mm

Min. width of slitting

5mm

5mm

5mm

Total Power

6.5kw

6.5kw

8.5kw

Weight

1400kg

1600kg

1800kg

Overall dimension

3800×1500×1500(mm)

3800×1700×1500(mm)

3800×1900×1500(mm)
